Description

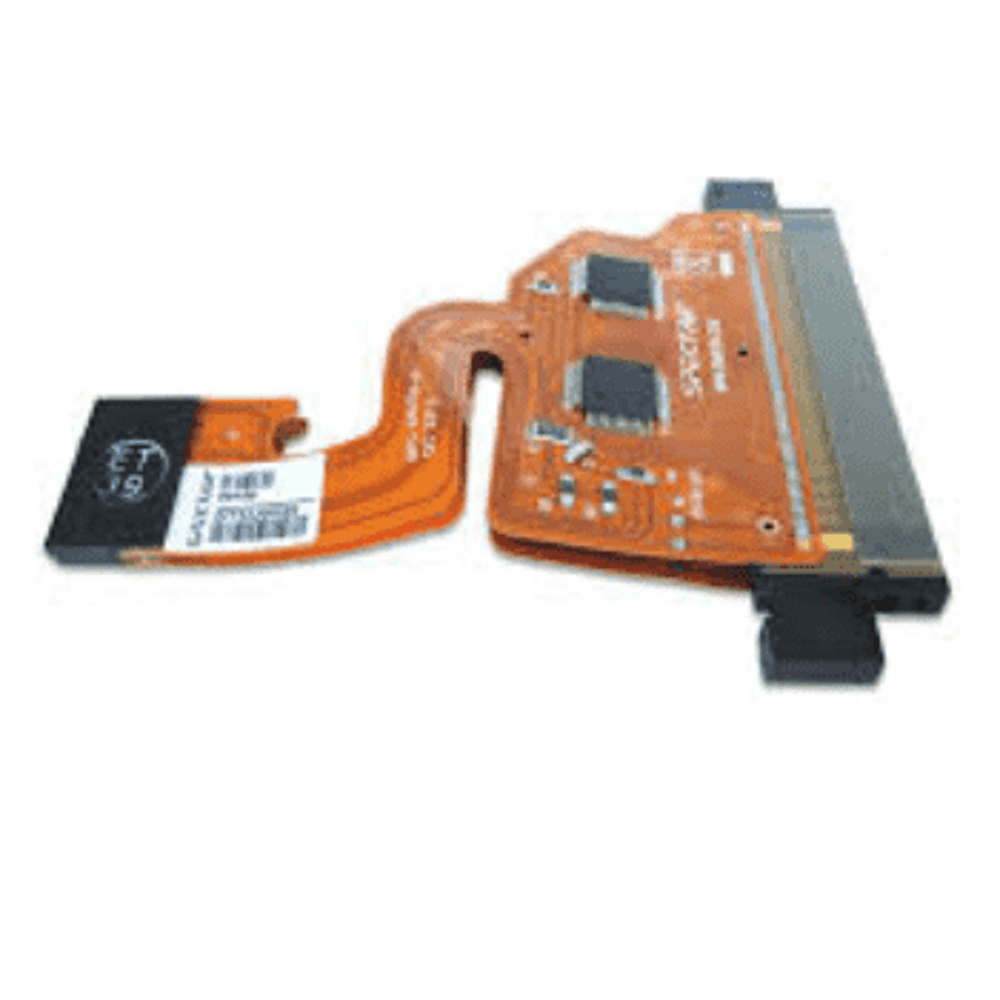

The SM-128 AA is a compact and lightweight 50 pL jetting assembly designed specifically for ink jet applications requiring multiple printheads packed tightly together.
These modules are ideal for fast-moving, high-performance printer carriage designs.
Two electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 128 jets. The nozzles are arranged in a single line, at a 0.020-inch distance between nozzles. Resolutions up to 600 dpi are possible.
Features
- 50 picolitres calibrated drop size.
- Resolutions up to 600 dpi.
- 128 individually addressable, inline nozzles.
- Lightweight and highly stackable.
- Orientation independent.
- Supports solvent and UV-curable based inks.
- Dual ported for ease of flushing.
- Optional temperature control.
SE-128/50 AA | |
Active nozzles | 128 |
Nozzle spacing | 508 μm |
Nozzle diameter | 50 μm |
Drop velocity | 8 m/s |
Printhead weight (dry) | 25 g (0.88 oz) |
Fluid type | Organic solvents, UV curables |
Drop volume* | 50 pl |
Typical firing frequency | 20 kHz |
Dimensions (WxDxH) | 102x5x102mm |
