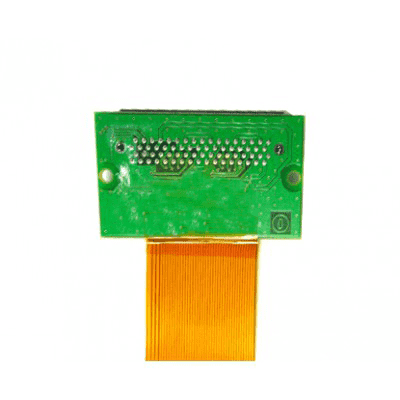

TS500-1800 Gen5 Printhead Assy Type-D - M014140 Mimaki / MTEX

  • Sale
  • $3,200.00
  • Regular price $3,580.00
  • or


This Gen5 (MH5420/5440) N221345D Printhead Assy Type-D is suitable for Mimaki TS500-1800 & TX500-1800 series printers. This is the original Mimaki part (number M014140).

Product
Specifications

  • Dimensions: 89 x 25 x 69 mm (excluding cables)
  • Head materials: SST, Nickel alloy and Epoxy Adhesive
  • Nozzle plate surface: Coated SST
  • Number of nozzles: 4 x 320 nozzles
  • Nozzle spacing: 0.1693 mm
  • Nozzle density: up to 600 npi
  • Piezo yype: D33 Stacked PZT
  • Temperature control: Integrated Heater and Thermistor
  • Operator temperature range: Up to 80° C
  • Native drop volume: 7 pl
  • Drop volume range: 7 - 35 pl
  • Drop velocity: 7 m/s
  • Jetting frequency: Up to 60 kHZ
  • Life: 100 billion actuations per nozzle
Compatible Printers :
Mimaki
  • TS500-1800
  • TX500-1800B
  • TX500-1800DS
MTEX
  • Turbo Sub
