Description

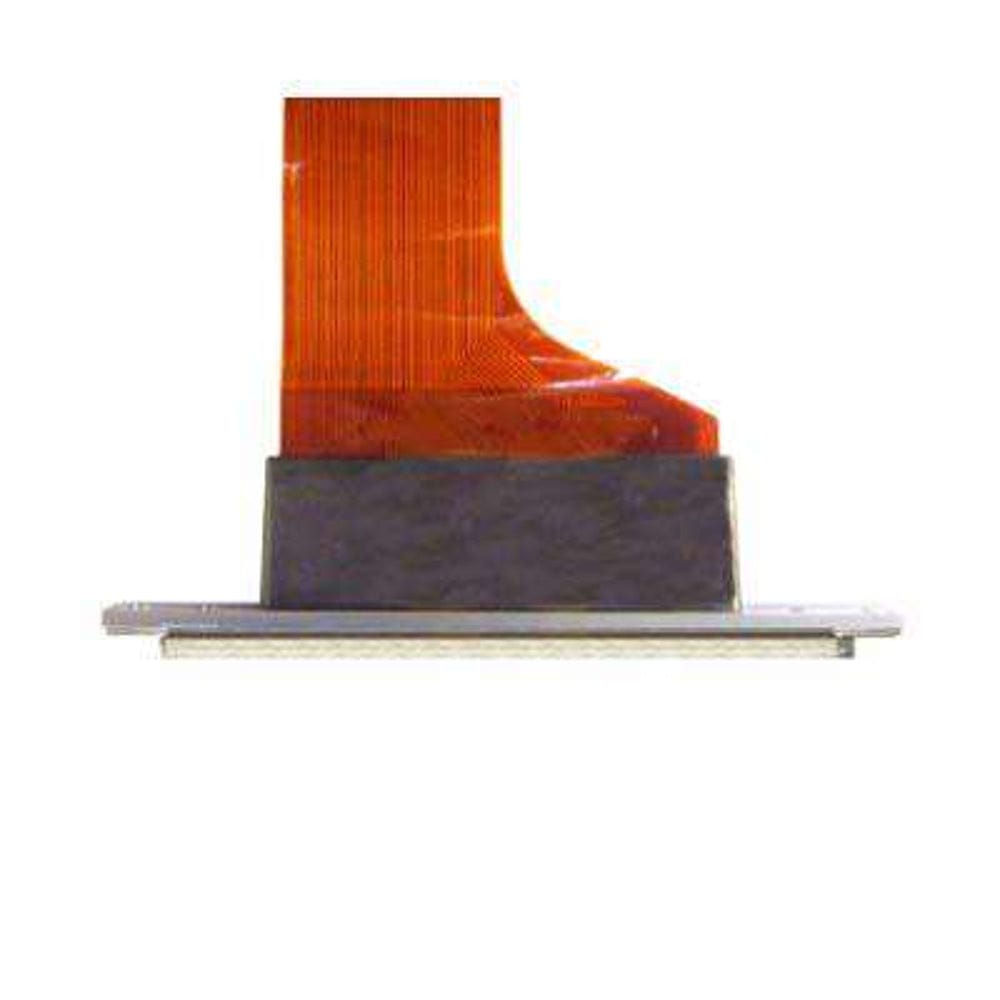

The Hitachi / Ricoh GEN3E1 (MH1801/1901) printhead is designed for the HP Scitex Turbojet printers. It is a compact, yet robust printhead for fast speed and high-quality printing with an isolated ink-chamber design and all-metal construction for industrial applications.
This is the original HP Scitex Turbojet printhead (part number CW903-62443 replacing 338036-001 and 502000269).
Product Specifications
- Active nozzles: 96
- Piezo type: D33 stacked PZT
- Print swathe width: 17.2 mm
- Nozzle Pitch: 0.6809 mm
- Drop velocity: 8 m/s
- Printhead weight: 60 g
- Dimensions: 120 x 35 x 8 mm
- Life: 100 billion actuations per nozzle
- Drop volume: 30 or 65 pl
- Firing frequency: up to 20 kHz.
COMPATIBLE PRINTERS:
HP
- Scitex TJ8300
- Scitex TJ8350
- Scitex TJ8500
- Scitex TJ8550
- Scitex TJ8600
- Scitex TURBOjet
