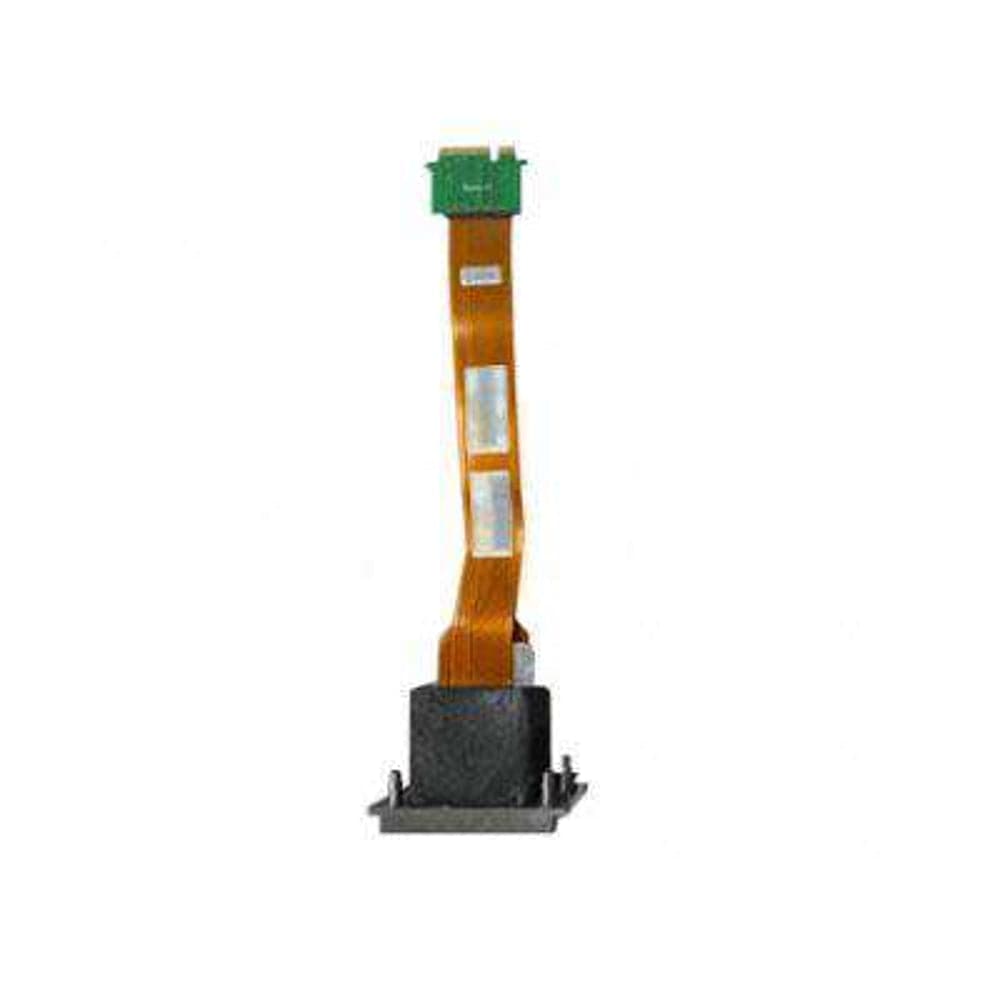

This GEN4 (MH2420) printhead is suitable for Mimaki TX400-1800 series printers. This printhead has an integrated heater and thermistor. This is the original Ricoh printhead which corresponds to Mimaki part number M011941. It is covered by a manufacturer warranty. This GEN4 printhead has a 44cm long cable and 4 hose barb ink inlets.
Product Specifications
- Size: 63 x 63 x 16,2 mm (excluding cables)
- Head Materials: SST, Ni, and Epoxy Adhesive
- Nozzle Plate Surface: Non-coated SST
- Number of Nozzles: 2 x 192 nozzles
- Nozzle Spacing: 0,1693 mm
- Piezo Type: D33 Stacked PZT
- Temperature Control: Integrated Heater and Thermistor
- Operator Temperature range: Up to 60° C
- Native Drop Volume: 7 pl
- Drop Volume Range: 5-25 pl with greyscale
- Jetting Frequency: Up to 30 kHz
- Life: 100 billion actuations per nozzle
Mimaki
- TX400-1800B
- TX400-1800D
