Vutek GS ASM, JETPACK GS/GSR GREY UNCOA QD CONN - 45095093

  • Sale
  • Regular price $3,915.00
  • or

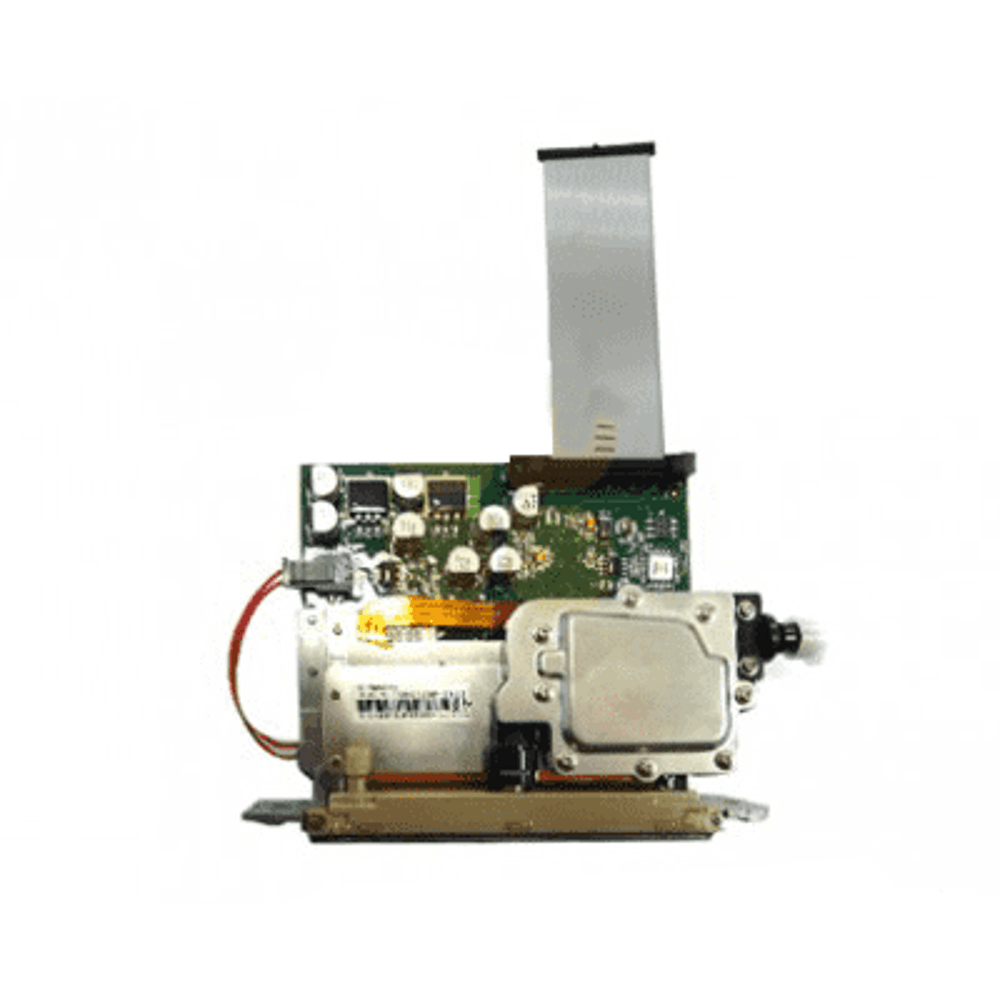

This ASM, Jetpack Print Head Grey Scale Platinum is suitable for VUTEk GS-series printers. This printhead includes the heating element and the smoothing electronic board. The jetpack also includes a set of two Jet Clamps (part number 45083572 / 45093679 / 45095093)  and screws to install and aligne the printheads on the Vutek printer. This is the original VUTEk part (number replacing numbers 45083572 / 45093679 / 45095093 / 45093679). This is the latest upgraded head that comes with the connector.

Technical Specifications
- Drop size: 12pl
- Grey Scale levels: 7
- Nozzles: 508 nozzles
- Firing Frequency: 18 kHz
- Active Print Width: 72 mm
- Damper: integrated, quick dry break connector

    COMPATIBLE PRINTERS :
    VUTEK
    • GS2000
    • GS2000 Pro
    • GS2000LX
    • GS2000LX Pro
    • GS3200
    • GS3200 Pro
    • GS3250
    • GS3250 Pro
    • GS3250LX
    • GS3250LX Pro
    • GS3250r
    • GS5000r
    • QS2 Pro
    • QS3 Pro
