Xaar Omnidot 760 Head Assy - KY-09015

  • Sale
  • Regular price $7,450.00
  • or

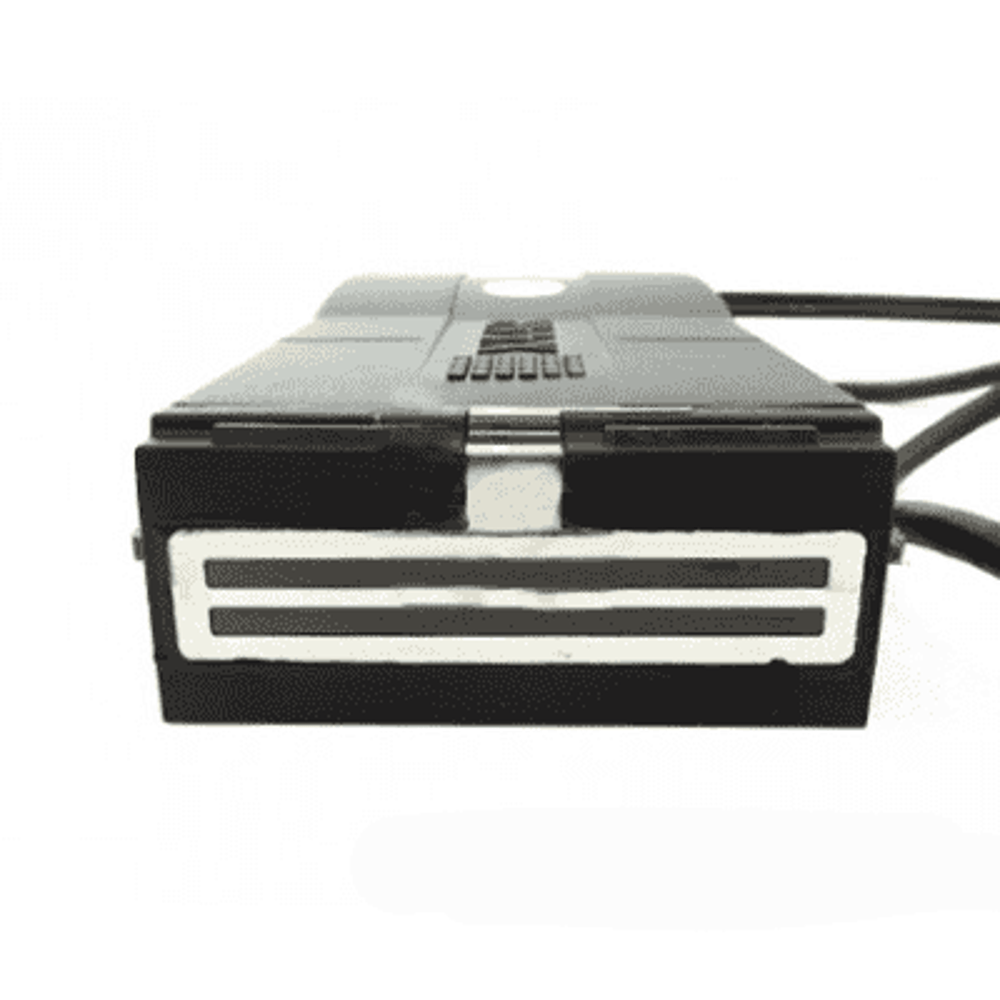

This Xaar Omnidot 760 printhead is suitable for Mutoh Zephyr 65 / Zephyr TS printers. The Xaar Omnidot 760 provides the optimum in flexibility, quality, reliability and speed. Based on Xaar’s unique patented multi-pulse greyscale technology Xaar 760 is user-definable and delivers a choice of binary or dynamic variable drop sizes, ranging from 8pl to 40pl.

Each of the 760 nozzles are controlled independently to create a printed result with exceptionally smooth gradation and tonal range – ideal for high quality graphics, packaging and traditional print applications.


This is the original Mutoh part (number KY-09015).


Product Specifications


  • Active nozzles: 764
  • Print swathe width: 53.8 mm
  • Nozzle pitch: 70.6 μm
  • Nozzle density: 360 npi
  • Drop velocity: 6 m/s
  • Printhead weight: 130 g
  • Dimensions: 86 x 42.2 x 164.8 mm
  • Drop volume: 8 pl
  • Typical firing frequency: 40 kHz


 Any Xaar Product we sell has a serial number and a 12 months manufacturer warranty.

COMPATIBLE PRINTERS :
Mutoh
  • Zephyr 65
  • Zephyr TS
Teckwin
  • TeckStorm TS300
  • TeckStorm TS600
