Description
For versatile digital print production
The Compact Series is a high-performance industrial textile printer. It is the ideal solution for new or experienced textile printing companies. The Compact Series offers high output, unmatched print quality in a smaller footprint than our flagship KYO Series.
Our RIP software optimizes high-resolution artwork with a touch of a key, sends it to the printer, and is ready to go. The software automatically adjusts the white under the base to optimize the cost per print, which is significantly reduced versus competition. We offer a large selection of pallets to offer the most flexibility for our customers and, like all aeoon printers, deliver high-resolution quality prints.
The Compact Series is a cost-effective industrial DTG printer that prints efficiently, at the highest quality, with the flexibility aeoon is known for offering.
Output C8 – on a dark garment
Print size (40 x 20 cm / ~16 x 8 in)*
Depending on the performance of the operator, on the material and design.
Benefits:
- Low capital expenditure enables entry into digital textile printing
- No pretreatment for white garments – low printing costs
- Industrial print heads with a print resolution from 600 dpi up to 2400 dpi
- Integrated API interface

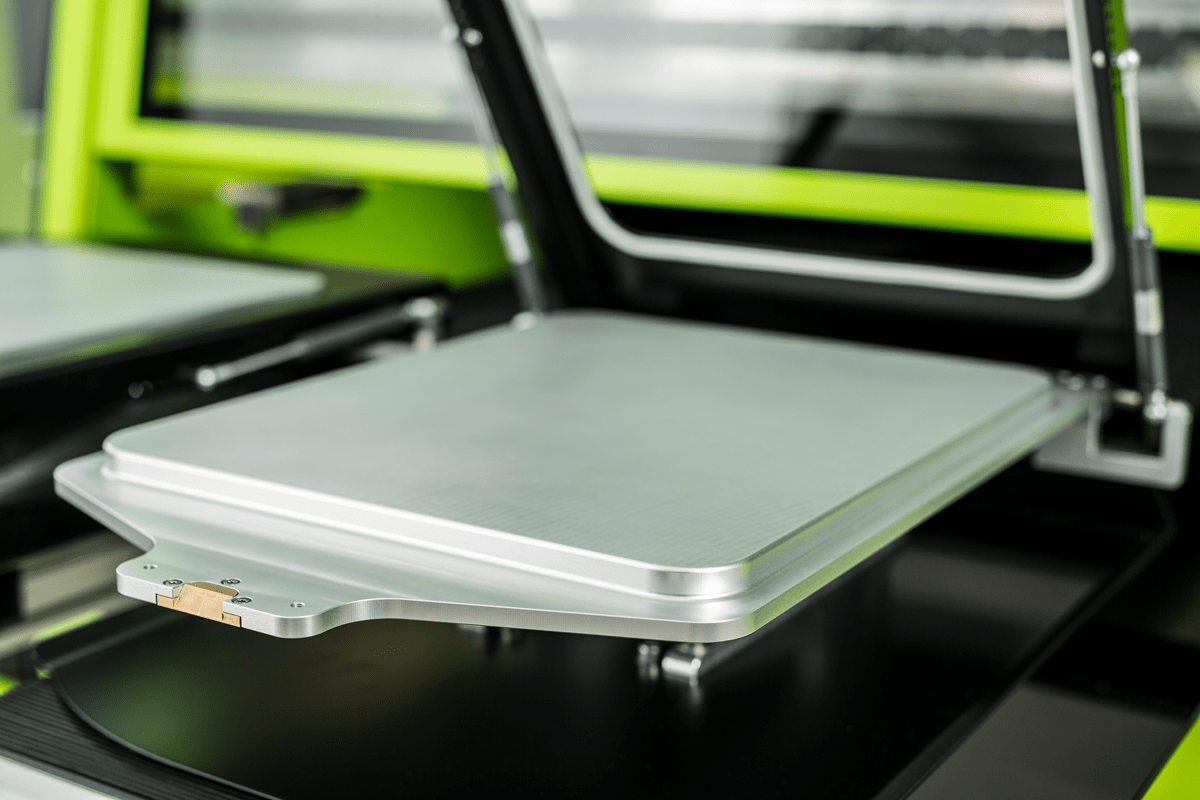

- Wide range of pallets – also for special applications
- max. print size 120 x 80 cm; ~ 47 x 31 in – frameless pallet
- Smaller footprint.
Angelo Grodzki, CEO & Founder of Heldenwerbung
“It was important for us to include an industrial machine in our machine park, which enables us to produce everything from personalized individual items to large orders with consistent print and color quality.”
Technical specifications:
| Industrial printheads: | 4 or 8 |
| Print stations: | 2 |
| Color channels: | CMYK, Double CMYK, CMYK + 4W |
| Max. Print size: | 50 x 70 cm; 19.7 x 27.6 in |
| Printable material: | Cotton, synthetics, mixed fibers, canvas, wood, leather, and more |
| Machine size: | 280 x 220 x 170 cm 110.2 x 86.6 x 66.9 in |
| Machine weight: | 1500 kg; 3307 lb |
| Electrical connections: | 400/208 VAC, 50/60 Hz, 3 Ph, 16 A – max. Power: 7.5 kVA |
| Compressed air: | 7 bar – quality class 5 |
|
Environmental conditions: depending on the ink used |
Temperature: 22 – 28 °C, Humidity: 65 – 90 % |
