Description

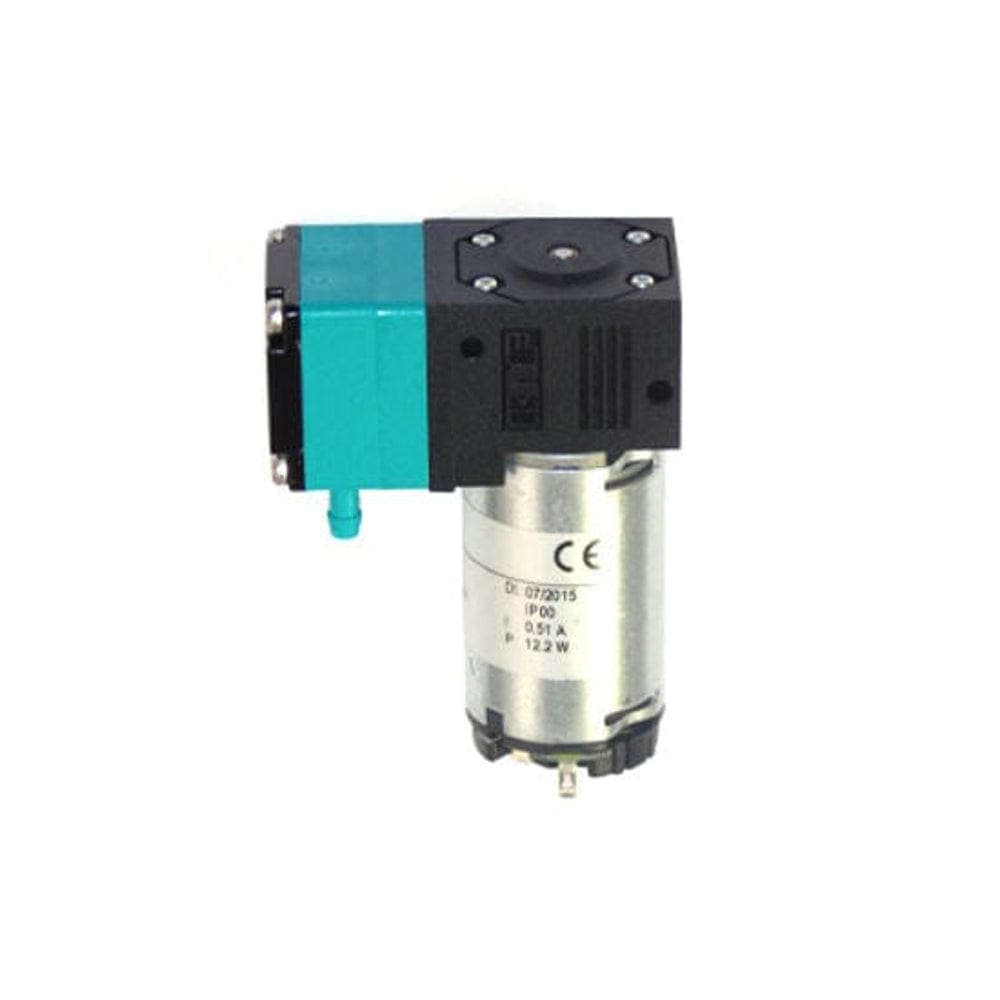

This micro diaphragm liquid pumps are based on the principle of the oscillating displacement pump which is remarkably simple in design. The circular power from the motor is converted into vertical movement by an eccentric. This motion is then transferred to a diaphragm by means of a connecting rod which in conjunction with an inlet and outlet valve creates a pumping action.
NF 60 type liquid pumps can be mounted in any position and can deliver up to 0.6 l/ min depending on the model and will operate against pressures of up to 14.5 PSIG.
The KNF modular system contains a wide standard range of materials, motors, voltages and frequencies to enable the selection of an optimal solution for your application.
