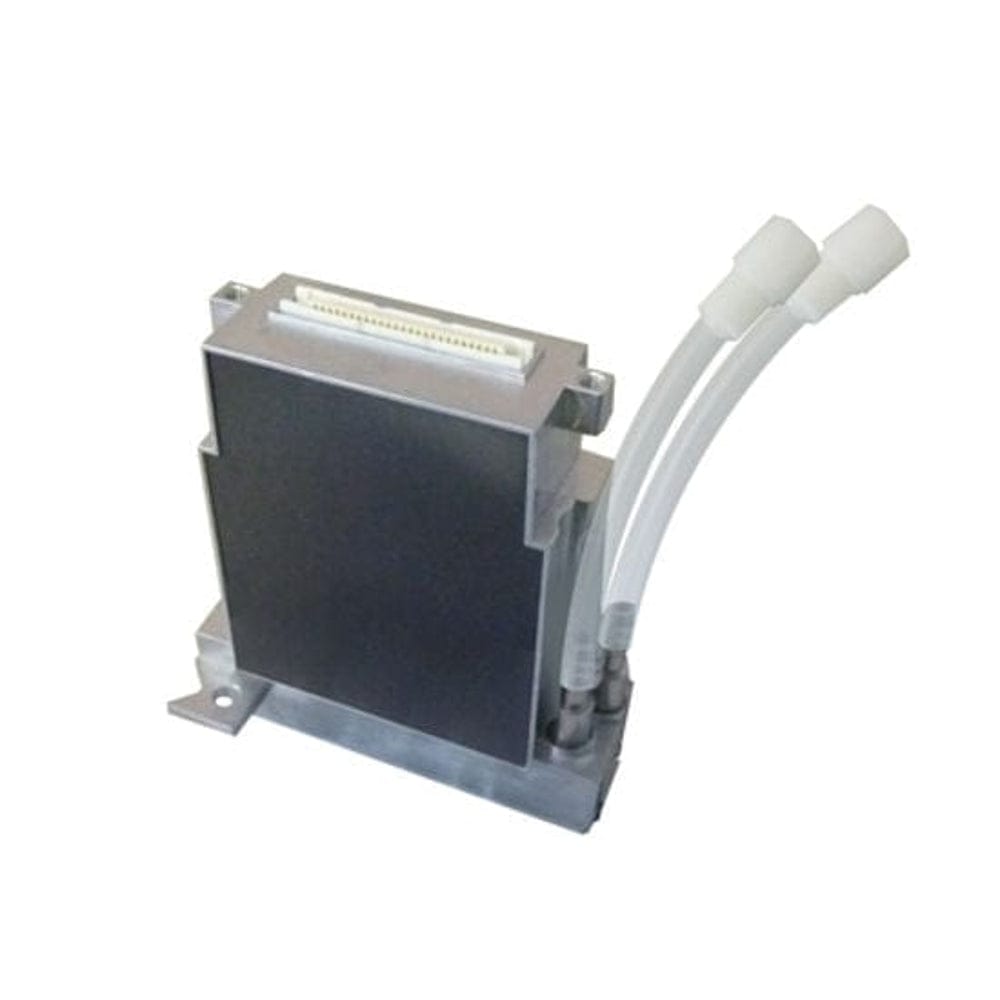

Konica KM512 LH 42PL Printhead

Sale price$1,550.00 USD
When product is not in stock, usually the time to process is 5-7 days.


The Konica Minolta KM512 LH print head is a robust, shear mode, piezo on-demand print head that is usable in binary mode only. The Konica Minolta KM512 LH print head has 512 nozzles with a droplet size of 42 picoliters and a native resolution of 360 dpi. It has an integrated heater, which makes it ideal for oil-based and UV inks, but it works with solvent ink as well. The heater can be heated up to 55°C. This print head is also known as the Konica Minolta KM512 LHX. This is Konica's original print head and it includes the necessary waveform information.


Technology: On-Demand Piezo Electric
Native Resolution: 360 dpi
Cal. Droplet Size: 42 picolitre
Tot. Amount of Nozzles: 512 (256 nozzles per line)
Nozzle Spacing: 70.5 microns
Print Width: 36.1 mm
Firing Frequency: 7.6 kHz
Ink Compatibility: Oil Based, Solvent and UV Inks
Heater: integrated

Compatible Printers:

  • Ampla Digital Targa Pro
  • Dilli Neo Titan UV-1606W
  • Docan 2512 UV
  • Docan 2518 UV
  • Docan 2518-16 UV
  • Docan 3020 UV
  • Flora F1 320UV
  • Gerber Solara Ion V
  • Gerber Solara Ion X
  • Grapo Manta Slim
  • Grapo Octopus II
  • Leopard UVB
