Description

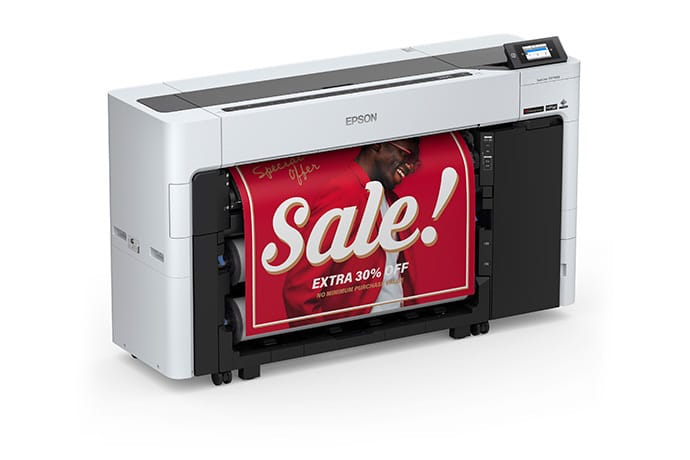

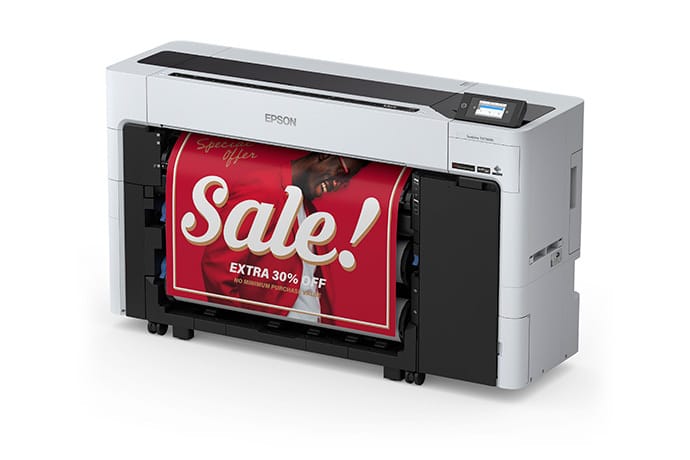

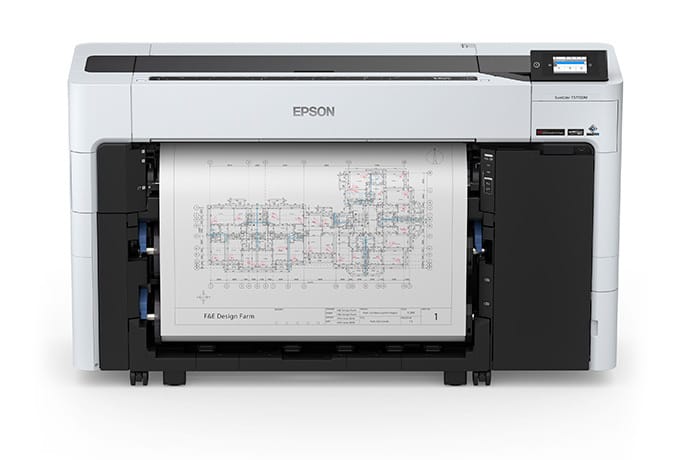

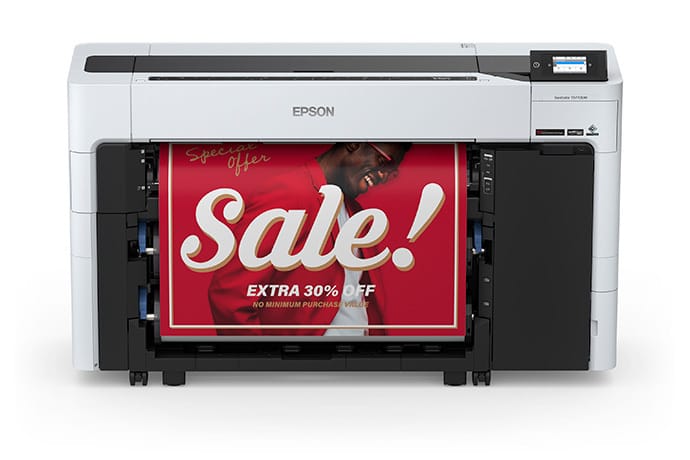

The Epson SureColor® T5770DM is an all-in-one 36-inch multifunction production printer with an integrated 36" dual-light scanner — high-speed print, copy, and scan with no additional footprint versus single-function T5770 models. The new benchmark in high-speed CAD and graphics for AEC teams.
Key Features
- Integrated 36" dual-light scanner — scans up to 10 ips (black-and-white) and 4.5 ips (color); dual light source reduces wrinkle appearance on originals
- Scan to PDF, JPEG, or TIFF — to USB, mobile devices, PCs, network folders, and more; predefined modes optimize blueprints, renderings, and tracing paper
- Incredible speed — 2.64" PrecisionCore® MicroTFP printhead delivers A1/D-size prints in as fast as 16 seconds
- UltraChrome® XD3 6-color pigment ink with Red — crisp lines, vibrant graphics, rich branding colors
- Dual-roll auto loading and switching with integrated take-up reel option
- Adobe® Embedded Print Engine included — native PDF and PostScript® processing
- High-capacity ink cartridges up to 700 mL, mix-and-match sizes
- 28+ integrated IT and security features; compact flattop design with complete front operation
Specifications at a Glance
- Maximum print width: 36 inches; scan width: 36 inches
- Ink: UltraChrome XD3 (Cyan, Magenta, Yellow, Red, Photo Black, Matte Black)
- Maximum resolution: 2400 x 1200 dpi
- Applications: CAD, technical documents, GIS maps, posters, scan/copy/share workflows
This printer is designed for use exclusively with genuine Epson ink cartridges. 1-year limited warranty; extended service plans available.
