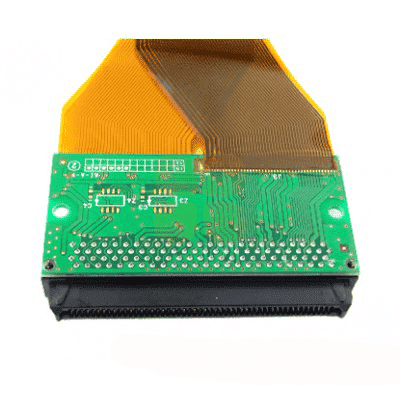

Ricoh Gen5. 7PL. Water Based - J36002/J36004

Sale price$3,150.00 USD
When product is not in stock, usually the time to process is 5-7 days.


This GEN5 printhead is suitable for a range of water printers. It supports up to four colors and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers. This is Ricoh original printhead and it is covered by a manufacturer warranty.

This Ricoh GEN5 is available in two different cable lengths:

  • 248mm long cable (Ricoh part number J36002 replacing N221414P)
  • 500mm long cable (Ricoh part number J36004 replacing N221414K)


Product Specifications

  • Dimensions: 89 x 25 x 69 mm (excluding cables)
  • Head materials: SST, Nickel alloy and Epoxy Adhesive
  • Nozzle plate surface: Coated SST
  • Number of nozzles: 4 x 320 nozzles
  • Nozzle spacing: 0.1693 mm
  • Nozzle density: up to 600 npi
  • Piezo type: D33 Stacked PZT
  • Temperature control: Integrated Heater and Thermistor
  • Operator temperature range: Up to 80° C
  • Native drop volume: 7 pl
  • Drop volume range: 7 - 35 pl
  • Drop velocity: 7 m/s
  • Jetting frequency: Up to 60 kHZ
  • Ink compatibility: Water Inks
  • Life: 100 billion actuations per nozzle


    ATP Color
    • DFP1320
    • DPP740 G5
    • Teleios Hexa
    • Arachne Hexa
    • Papyrus G5
    • Papyrus Hexa
    • Teleios Grande G5
    • Artrix G5
    • Teleios Grande/H6
    • J4
    • LJ200T
    • ColorBooster 230
    • ColorBooster 250
    • MY1800T
