Description

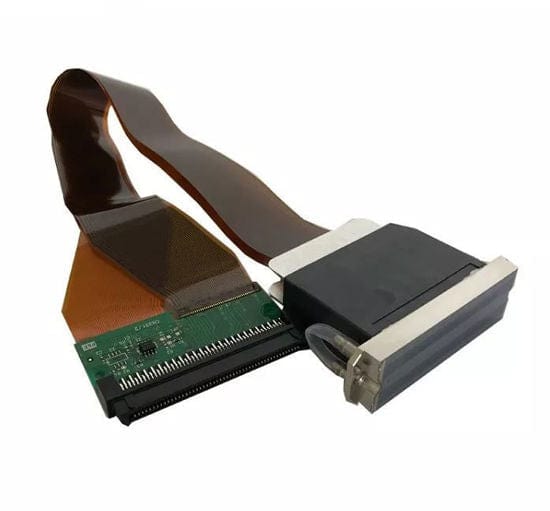

This Ricoh GEN5 Printhead suits various UV, Solvent, and Aqueous based printers.
With 1,280 nozzles configured in 4 x 150 dpi rows, this head achieves high-resolution 600 dpi printing. The ink paths are also isolated, enabling a single head to jet up to four ink colors. It achieves excellent gray-scale rendering with up to 4 scales per dot.
Product Specifications
- Dimensions: 89 x 25 x 69 mm (excluding cables)
 - Head materials: SST, Nickel alloy, and Epoxy Adhesive
 - Nozzle plate surface: Coated SST
 - Number of nozzles: 4 x 320 nozzles
 - Nozzle spacing: 0.1693 mm
 - Nozzle density: up to 600 dpi
 - Piezo type: D33 Stacked PZT
 - Temperature control: Integrated Heater and Thermistor
 - Operator temperature range: Up to 80° C
 - Native drop volume: 7 pl
 - Drop volume range: 7 - 35 pl
 - Drop velocity: 7 m/s
 - Jetting frequency: Up to 60 kHz
 - Life: 100 billion actuations per nozzle
