Mimaki UJF-3042 Head Unit Assy - M010010

Save 12%

Sale price$2,850.00 USD Regular price$3,234.00 USD
When product is not in stock, usually the time to process is 5-7 days.

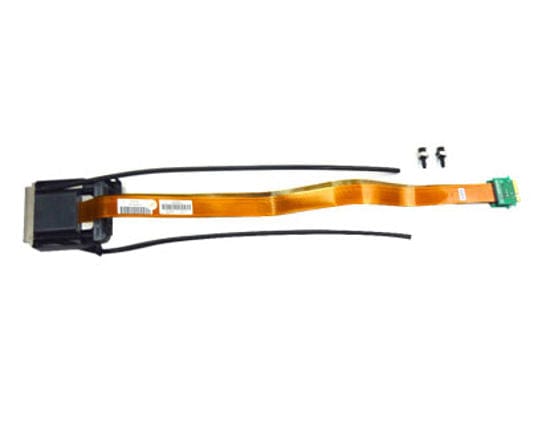

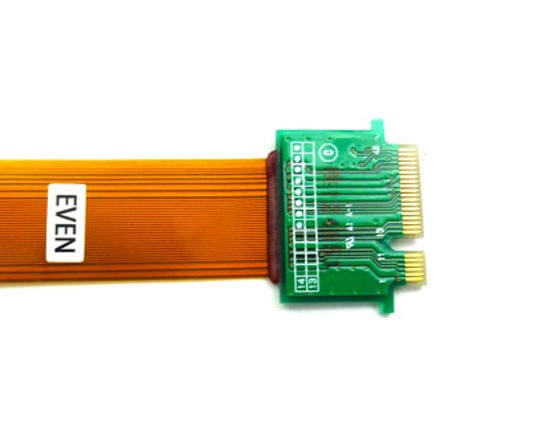

This Ricoh GEN4 (MH2420), 384 channels, 30 kHz, 7 picolitres, the greyscale printhead is suitable for Mimaki UJF-3042 printers. This original printhead has an integrated heater and thermistor.

This printhead corresponds to Mimaki part number M010010. This part includes the damper adapter M014497.

Technical Specifications :

Size: 63 x 63 x 16,2 mm (excluding cables)
Head Materials: SST, Ni, and Epoxy Adhesive
Nozzle Plate Surface: Non-coated SST
Number of Nozzles: 2 x 192 nozzles
Nozzle Spacing: 0,1693 mm
Piezo Type: D33 Stacked PZT
Temperature Control: Integrated Heater and Thermistor
Operator Temperature range: Up to 60° C
Native Drop Volume: 7 pl
Drop Volume Range: 5-25 pl with greyscale
Jetting Frequency: Up to 30 kHZ
Life: 100 billion actuations per nozzle

Compatible Printers:


  • UJF-3042
  • UJF-3042FX
  • UJF-3042HG
  • UJF-6042


  • Ampla Digital Targa XT 1804
  • Ampla Digital Targa XT 1808
  • Ampla Digital Targa XT 1816
  • Ampla Digital Targa XT 3204
  • Ampla Digital Targa XT 3208
  • Ampla Digital Targa XT 3216
